Tag Specifications
Example Configurations

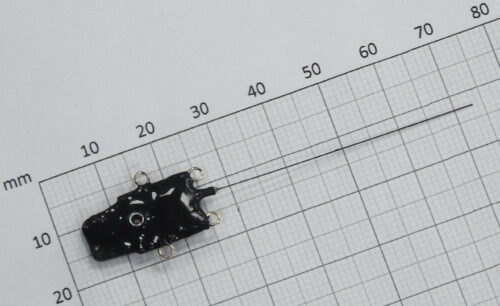

1.05g MINI GPS logger + accel + air pressure

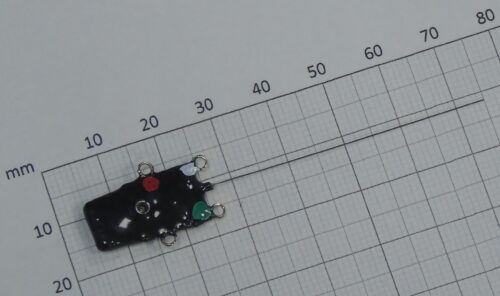

1.2g MINI GPS logger + accel + air pressure
Alternate
 |
|
| Weight | 1.05g |
| Dimensions | 19x11x4.5mm plus ~50mm external whip antenna |
| Battery-only Capacity | ~320 GPS location attempts Pressure and accelerometer data may reduce this slightly - contact us for further details |
| Onboard storage | Reserved memory for at least 10,000 GPS location attempts Remaining memory available for sensor data. Example usage: (1) 1 Hz pressure and immersion data for 180 days (2) 1 Hz pressure and immersion data, plus 12.5Hz continuous accelerometer data for 3.5 days |
| Immersion Sensor | Onboard sensor used to avoid wasted power when bird is submerged |
| Accelerometer | Burst or continuous data capture at 1Hz, 12.5Hz, 25Hz or 50Hz |
| Programming Interface | PC programmer via USB |
| Waterproofing | Depth proof to 30m |
| Packaging | Epoxy |
| Attachment Method | Tape or glue |
