Tag Specifications
Example Configurations

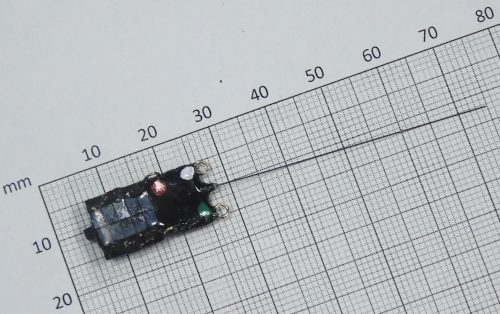

1.2g Mini GPS logger + accel + solar
1.25g Mini GPS logger + accel + solarPlus
1.25g Mini GPS logger + accel + solar
Alternate
 |
|
| Weight | 1.2g |
| Dimensions | 20x11x5mm plus ~50mm external whip antenna |
| Battery-only Capacity | ~800 GPS location attempts. Accelerometer data may reduce this slightly - contact us for further details. |
| Solar Capacity | ~80 GPS location attempts per day in UK summertime conditions |
| Onboard storage | 320000 GPS location attempts with accelerometer disabled 10000 GPS location attempts with up to 90 days of continuous accelerometer data for example |
| Accelerometer | Burst or continuous data capture at 1Hz, 12.5Hz, 25Hz or 50Hz |
| Programming Interface | PC programmer via USB |
| Waterproofing | Immersion proof |
| Packaging | Epoxy |
| Attachment Method | Harness using front tube and attachment rings |
